India's #No. 1 Supplier for the Best Quality Fusing Machine with the Latest Taiwan Technology
In Multi-Size Conveyor Belts (500 mm, 600 mm, 900 mm, and 1600 mm) has inbuilt advanced-quality silicone rollers. Starting Price: Rs. 1,45,000/- * No more service is required. 24/7 support is available.
Fucen Sewing Machine Co., Ltd. is a reputable company specializing in the manufacturing and distribution of Needle Detector Machines. Established in 2000, we have years of experience in this field and have developed a reputation for excellence in our products and services.
Belt Type Fusing Machine
Designed for reliability and efficiency, it features an automatic movement belt system. Perfect for heat transfer and cloth fusing, with adjustable heat, speed, and pressure for precision and accurate results
Automatic Movement: Seamlessly navigate heat transfer and cloth pasting with the machine's automatic movement belt system, ensuring consistent and precise processing.
Adjustable Heat: Fine-tune the heat settings to match your requirements, guaranteeing optimal heat transfer and cloth pasting outcomes.

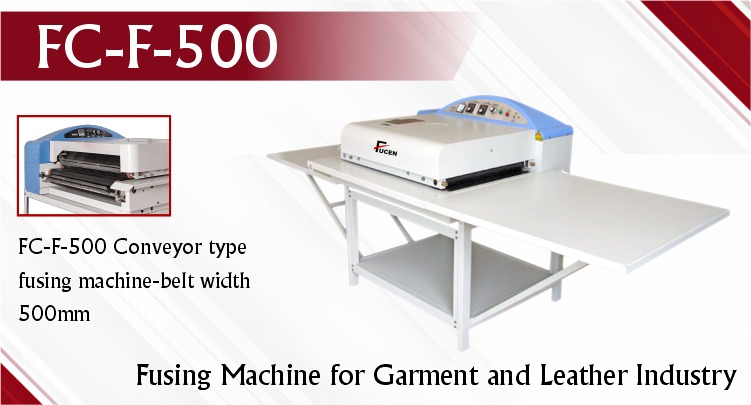

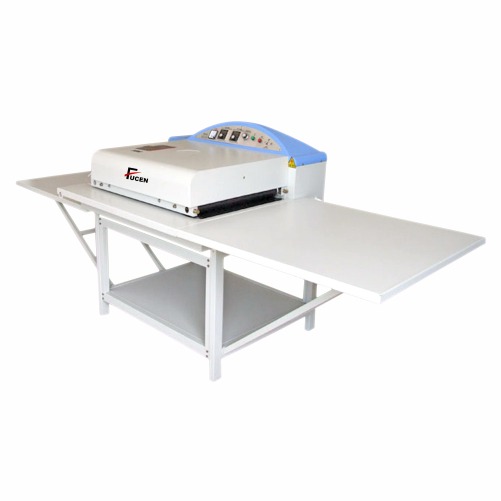

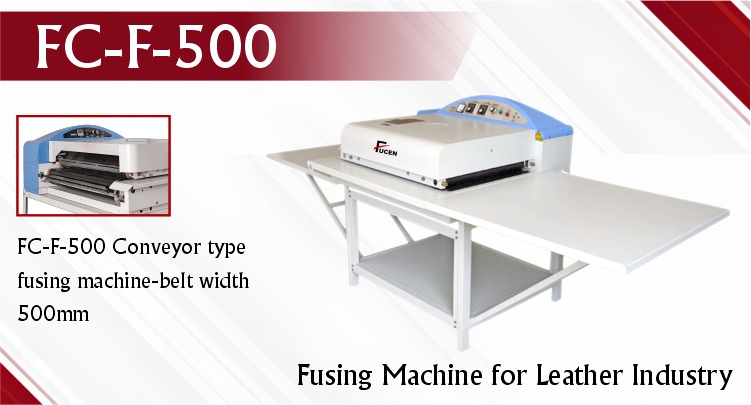

Conveyer type Fusing Machine-Belt width 500mm.
Specifications
| Model: | FC-F-500 |
| Belt Width: | 500 mm |
| Power: | 220V |
| Temperature: | 0-200°C |
| Belt Speed: | 0-10m/min |
| Pressure: | 0-3 (max) |
| Heater: | 5.5 kw |
| Motor: | 400 w pmdc |
| Dimension: | 1670x1000 |
| Weight: | 170kg |
Features:
- Design for fusing interlining of waist band, front placket, lady blouse, collar and cuff at low temperature and low pressure
- Special designed Teflon belt for fast heat transmitting speed
- Opening side design enables freely passing of large piece of material
- Spring pressure adding system
- Working width: 500mm
- Maximum design temperature: 220°C
- Variable speed control
- Continuous rotary belt design, maximizing production and no limit on length to be fused
- The machine features unique and novel shape, easy to operate, light indication on the panel makes the operation of unit clear.
